  • Aluminum checker plate
■ Full Data

 Aluminum checker plate

Aluminum Checker Plate aslo named as Aluminum chequer plate,Aluminum checkered plate.It is easy to fabricate and its raised diamond ,bar,pointer,lug pattern provides good slip resistance.Which has good forming, drilling and welding abilityis and widely used in decorative, shipbuilding and architectural applications.

      ►Alloy:1060, 1100, 3003, 3105, 5052, 5083, 5754, 6061 etc.
      ►Temper:H14/H154  H24/H254  H26/H274 H18/H194 H32/H334 etc.
      ►Thickness:0.03" - 0.28" (0.8mm - 7mm)
      ►Width:100mm -2600mm
      ►Length:500mm -16000mm
      ►Checker height:1.0mm-2.5mm
      ►Checker length:35mm-50mm

ALLOY/TEMP SIZE(FT) SIZE(IN) SIZE(MM)
3003 H22/24 .0525*4*8 .063×48×96 1.6×1219×2438
3003 H22/24 .525*4*10 .063×48×120 1.6×1219×3048
3003 H22/24 .02*4*10 .250×48×120 6.35×1219×3048
3003 H22/24 .01*4*8 .125×48×96 3.175×1219×2438
3003 H22/24 .02*4*16 .250×48×192 6.35×1219×4876

aluminum circleFeatures of Aluminum Checker Plate (Aluminium chequer plate,Aluminum checkered plate)
    Antiskid
     Light in weight
     Convenient assembling
     Disassembling

aluminum circlePattern of Aluminum Checker Plate (Aluminum chequer plate,Aluminium checkered plate)
      big 5 bar

 small 5 bar

 3 bar

 diamond

 pointer
Diamond pattern Aluminum checker plate5 bars pattern Aluminum checker plate

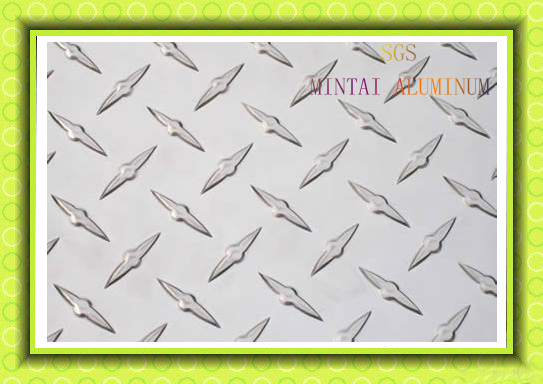

       Diamond pattern Aluminum checker plate

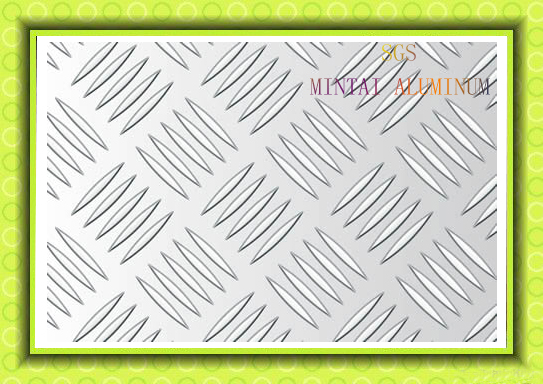

5 bars pattern Aluminum checker plate

aluminum circleApplications of Aluminum Checker Plate (Aluminum chequer plate,Aluminium checkered plate)
  • Loading Ramps
  • Stair Tread
  • Flooring
  • Dock Plate
  • Dock Board
  • Decorative purposes
  • Fire Trucks
  • Ambulances
  • Recreational Vehicles
  • Car Rear Bumper Protector
  • Ship deck
  • Autos
  • Workshop floors
  • Building floors and steps
  • Antiskid floor of bus
  • Elevator
  • Stair tread
  • Treadboard
  • Vehicle step
  • Amusement park
  • Cabinet facing
  • Ceiling fan
  • Hot rod
  • Wall accent
  • Restaurant service area
  • Table top
Checker plate stair treadsChecker plate used in the ceiling

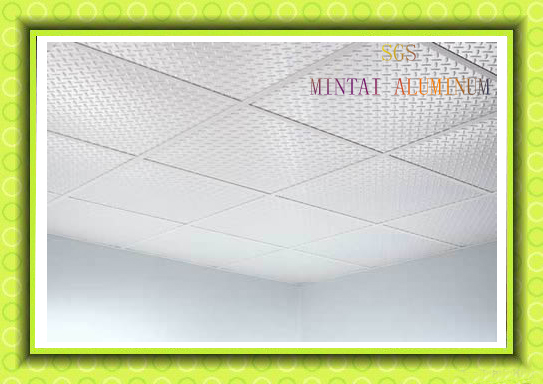

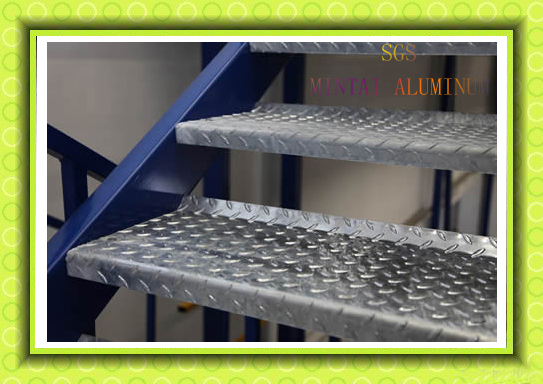

Checker plate used in stair treads                                                  Checker plate used in the ceiling
aluminum circlePackaging of Aluminium Checker Plate (Aluminium chequer plate,Aluminum checkered plate)
  Our Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

aluminum circleVideo
   Aluminium checker plate
  aluminium circle

aluminum circleAbout us
    As a professional manufacturer and supplier of aluminium checker plate based in China, we also provide  aluminium strip,  aluminium slit coil, anodising aluminum sheet,aluminium sheet,and more.Our products have exported to Argentina, Australia, New Zealand, USA, Brazil, Chile, Fiji, Mexico, Germany, UK, Italy, Czech, Saudi Arabia, UAE, Iran, Iraq, Bangladesh, India, Sri Lanka, Viet Nam, Japan, Korea, Singapore, Indonesia, Philippines, South Africa etc more than 50 countries. Whenever you have a need for any of our products, please feel free to contact us .
