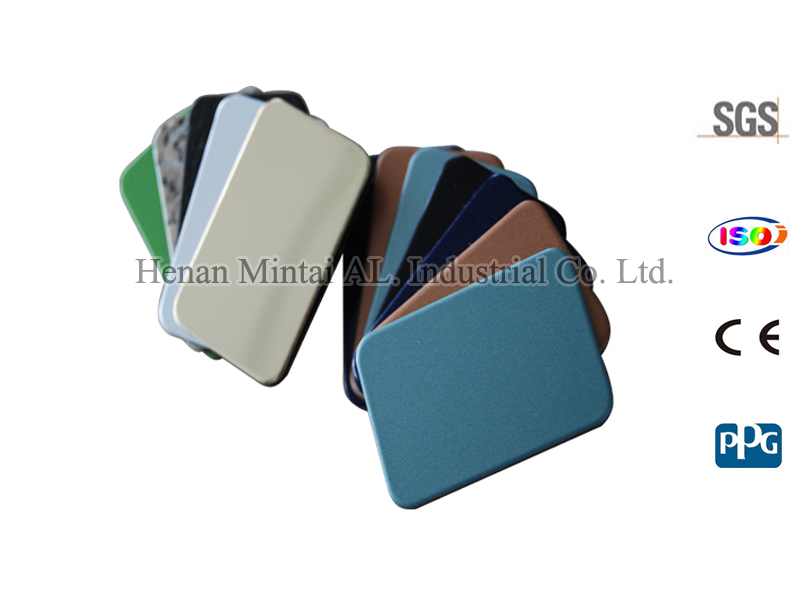

 PVDF Coated Aluminum Composite Panel

The PVDF aluminum composite panel consists of two sheets of corrosion resistant aluminum permanently bonded to polyethylene core material. The front aluminum coats PVDF (Fluor resin) paint. Because of its excellent weather proof and other features, this aluminium composite material becomes a very popular cladding material in the world.

Technical Specifications( PVDF Coated Aluminum Composite Panel)



Brand:

Mintai

Product Name:

wall decoration panel

Thickness:

2mm-6mm

Aluminum thickness:

0.1mm-0.50m

Panel width:

1000mm,1220mm,1250mm,1500mm,1550mm,1575mm,2000mm

Panel length:

up to 6500mm

Certification:

SGS.BV.CE.ISO9001:2000

Paint source:

PPG & Becker

PE core Material:

non-toxic and low-density Polyethylene

Color:

Any Pantone colors or Ral colors can be customized




Feature:(PVDF Coated Aluminum Composite Panel)
Super werther resistance
Light weight and easy to process
Excellent fire resistance
Excellent impact strength
Uniform and colorful coating
Easy maintenance...and so on

Application(
 PVDF Coated Aluminum Composite Panel)
Constructional exterior curtain walls
Decorative renovation for storey-added old buildings
 Advertisement board, shop face decorating, display platforms and signboards
Wallboard and ceilings for tunnels; Circular columns for outside use
The PVDF aluminum composite panel is also an ideal raw material for industrial purpose
